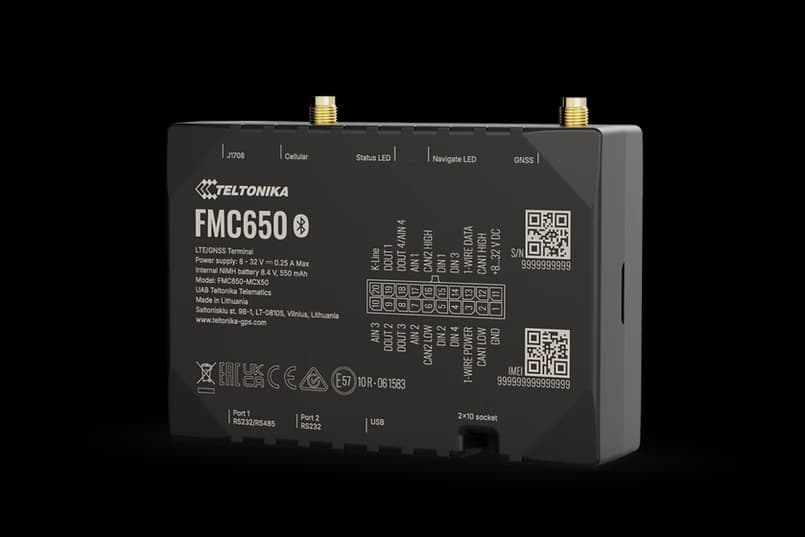

Teltonika FMC650 4G
Teltonika
4
(10000 reviews)
The Teltonika FMC650 is a professional LTE Cat 1 GPS tracker with GSM fallback, Bluetooth® LE, and dual-band GNSS support (L1/L5) for high-precision positioning. Powered by the MeiG SLM320 module with Airoha AG3335MB GNSS, it supports GPS, GLONASS, GALILEO, BEIDOU, and QZSS, delivering <2.5 m accuracy and ultra-fast acquisition. With robust connectivity and advanced features, the FMC650 is ideal for fleet management, logistics, and telematics applications on heavy vehicles and industrial machinery.
1
In Stock
Key Features
Supports heavy vehicles and special machinery via J1939 CAN data
Reads raw J1939 data from construction equipment, trucks, buses, and industrial machines
Multiple node CAN line connectivity for complex vehicle networks
Remote Tachograph file download for compliance and reporting
Live Tachograph data reading through K-Line, Tacho CAN, or FMS
Reliable global LTE Cat 1 and GSM fallback coverage
Dedicated GNSS module for precise and stable positioning
Technical Specifications
Comprehensive details and features
Name
MeiG SLM320-PE2C
Technology
LTE (Cat 1) / 2G (GSM/GPRS)
2 G bands
B2/B3/B5/B8
4 G L T E bands
- LTE-FDD: B1/B3/B7/B8/B20/B28
- LTE-TDD: B38/B40/B41
Data transfer
LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL); LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL); GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
Data support
SMS (text/data)
Input voltage range
8 - 32 V DC with overvoltage and reverse polarity protection
Internal Back-up battery
550 mAh Ni-Mh, 8.4 V battery
Current consumption at 12 V
- At 12V < 4 mA (Deep Sleep)
- At 12V < 11 mA (Online Deep Sleep)
- At 12V < 32 mA (GPS Sleep)
- At 12V < 45 mA (nominal, no load)
Specification
5.0 + LE
Supported peripherals
Temperature and Humidity sensor, Universal Bluetooth® LE sensors support
Dimensions
104.1 x 76.8 x 31.5 mm (L x W x H)
Weight
197 g
Operating temperature (without battery)
-40 °C to +85 °C
Storage temperature (without battery)
-40 °C to +85 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP41
Battery charge temperature
0 °C to +45 °C
Battery discharge temperature
-20 °C to +45 °C
- Digital Inputs: 3
- Digital Outputs: 3
- Analog Inputs: 2
- 1-Wire: 1
- RS232: 2
- CAN J1939: 2
- J1708: 1
- K-line: 1
- GNSS antenna: External High Gain (L1+L5)
- GSM antenna: External High Gain
- USB: 2.0 Mini-USB
- LED indication: 2 status LED lights
- SIM: 2x SIM Card (Dual-SIM) or 1x eSIM
- Memory: 16 MB internal flash memory + external Micro SD card up to 32GB
- Movement detection: Accelerometer
- Scenarios: Green/Eco Driving, Over Speeding detection, Jamming detection, Excessive Idling detection, Towing detection, Crash detection, Immobilizer, iButton Read Notification, Auto Geofencing, Manual Geofencing, Trip detection, Odometer, DDD download and Tacho online data
- Supported peripherals: Garmin, RFID RS232, RFID 1-Wire, iButton 1-Wire, Temperature 1-Wire, LV-CAN200, ALL-CAN300, CAN FMS (J1939, J1708), K-line data
- Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep
- Configuration and firmware update: FOTA Web, FOTA, Teltonika Configurator
- Fuel monitoring: LLS (Analog), Digital LLS (RS232, RS485), LV-CAN200, CAN FMS, Ultrasonic level sensor
- Regulatory : CE/RED, E-Mark, EAC, RoHS, REACH, CITC, RCM, IMDA, Anatel, JATE, TELEC, SIRIM QAS, SDPPI POSTEL, KC, ICASA, SUTEL
What's in the Box
FMC650 tracker
Input/output power supply cable
External GNSS/GSM antenna pair
Packaging box with Teltonika branding
