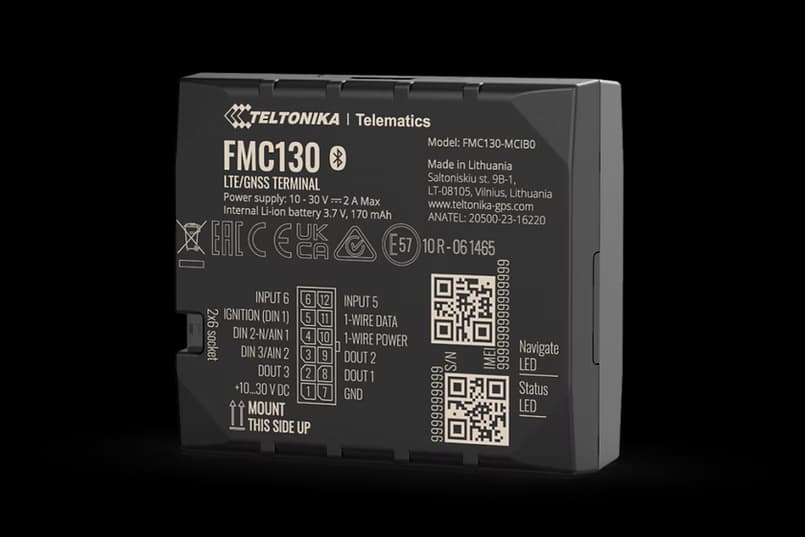

Teltonika FMC130 4G
Teltonika
4
(20000 reviews)
The Teltonika FMC130 is an advanced 4G LTE GPS tracker with Bluetooth® LE and GSM backup, built for professional fleet tracking and vehicle security. It offers fast, accurate GNSS positioning (<2.5 m) and reliable global connectivity. With secure data transfer and robust performance, it's ideal for fleet management, logistics, and asset tracking.
1
In Stock
Key Features
Built-in accelerometer for driving behavior analysis and crash detection
Predefined scenarios: Green Driving, Over Speeding, GNSS Fuel Counter, DOUT Control via Call, Excessive Idling, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto & Manual Geofence, Trip, Jamming detection (SLM320-E / SLM320-LA hardware only)
Multiple power-saving modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Remote configuration and firmware updates via FOTA Web, FOTA, or Teltonika Configurator (USB/Bluetooth®)
SMS support for configuration, event notifications, DOUT control, and debugging
GPRS commands for configuration, DOUT control, and debugging
Technical Specifications
Comprehensive details and features
Name
- FMC130-ME1: MeiG SLM320-E1 with Teltonika TM2500
- FMC130-ME3 : MeiG SLM320-E2 with Teltonika TM2500
- FMC130-MCIB0 : MeiG SLM320-LA with Teltonika TM2500
Technology
LTE (Cat 1) / 2G (GSM/GPRS) / GNSS / BLUETOOTH® LE
2 G bands
- FMC130-ME1 : GSM: B2/B3/B5/B8
- FMC130-ME3 : GSM: B2/B3/B5/B8
- FMC130-MCIB0 : GSM: B2/B3/B5/B8
4 G L T E bands
- FMC130-ME1 : LTE FDD: B1/B3/B5/B7/B8/B20, LTE-TDD: B38/B40/B41
- FMC130-ME3 : LTE FDD: B1/B3/B7/B8/B20/B28, LTE-TDD: B38/B40/B41
- FMC130-MCIB0 : LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28, LTE-TDD: B40
Data transfer
- LTE FDD : Max 10 Mbps (DL) / Max 5 Mbps (UL)
- LTE TDD : Max 8 Mbps (DL) / Max 2 Mbps (UL)
- GSM GPRS : Max 85.6 Kbps (DL) / Max 85.6 Kbps (UL)
Data support
SMS (text/data)
Transmit power
- GSM850/900 : Class 4, 33±2 dBm
- GSM1800/1900 : Class 1, 30±2 dBm
- LTE-TDD : Class 3, 23±2.7 dBm
- LTE-FDD : Class 3, 23±2.7 dBm
Input voltage range
10 - 30 V DC with overvoltage protection
Internal Back-up battery
170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Internal fuse
3A, 125V
Power consumption
- At 12V < 250 mA Max (with full Load / Peak)
- At 12V < 3 mA (Ultra Deep Sleep)
- At 12V < 5 mA (Deep Sleep)
- At 12V < 16 mA (Online Deep Sleep)
- At 12V < 18 mA (GPS Sleep)
- At 12V < 33 mA (Nominal with no load)
Specification
4.0 + LE
Supported peripherals
Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth® LE sensors support
Dimensions
65 x 56.6 x 20.6 mm (L x W x H)
Weight
61 g
Operating temperature (without battery)
-20 °C to +85 °C
Storage temperature (without battery)
-20 °C to +85 °C
Operating temperature (with battery)
-20 °C to +40 °C
Storage temperature (with battery)
-20 °C to +45 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP41
Battery charge temperature
0 °C to +45 °C
Battery discharge temperature
-20 °C to +60 °C
Battery storage temperature
1 month
-20 °C to +45 °C6 months
-20 °C to +35 °CDigital Inputs
3
Negative Inputs
1 (Digital Input 2)
Impuls Inputs
2 (Digital Input 1, Digital Input 2)
Digital Outputs
3
Analog Inputs
2
C A N Adapter Inputs
1
1- Wire
1
G N S S antenna
Internal High Gain
Cellular antenna
Internal High Gain
U S B
2.0 Micro-USB
L E D indication
2 status LED lights
S I M
Micro-SIM or eSIM
Memory
128 MB internal flash memory
Sensors
Accelerometer
Scenarios
Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip, Jamming (supported only on hardware with SLM320-E and SLM320-LA)
Sleep modes
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update
FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology)
S M S
Configuration, Events, DOUT control, Debug
G P R S commands
Configuration, DOUT control, Debug
Time Synchronization
GNSS, NITZ, NTP
Fuel monitoring
LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
Ignition detection
Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)
- Regulatory : CE/RED, E-Mark, EAC, RoHS, REACH, CITC, RCM, IMDA, Anatel, JATE, TELEC, SIRIM QAS, SDPPI POSTEL, KC, ICASA, SUTEL
What's in the Box
FMC130 tracker
Input/output power supply cable (0.9 m)
Packaging box with Teltonika branding
