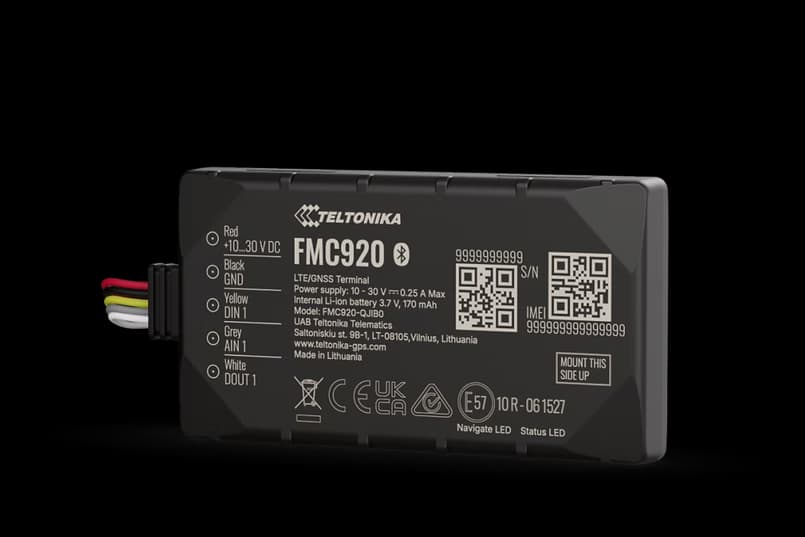

Teltonika FMC920 4G

Teltonika
4
(20000 reviews)

The Teltonika FMC920 is a small, reliable 4G LTE GPS tracker with GSM backup, built for real-time vehicle tracking, fleet management, and telematics. It uses the Quectel EG915 module with Teltonika TM2500 for stable connections across LTE and GSM networks. The device supports multiple GNSS systems (GPS, GLONASS, GALILEO, BEIDOU, etc.) for fast and accurate location tracking (accuracy < 2.5 m). With strong performance and secure data transmission using TCP, UDP, TLS, and MQTT, the FMC920 also allows SMS control and alerts. Compact yet powerful, it's perfect for fleet tracking, logistics, insurance, and vehicle security.

1
In Stock

Key Features

Built-in GNSS and GSM/LTE modules for real-time tracking
Accelerometer for driver behavior monitoring and crash detection
Scenarios: Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration & firmware updates: FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology)
SMS functionality: configuration, event alerts, DOUT control, debugging

Technical Specifications

Comprehensive details and features

Name
  • FMC920-QJ/IBB: Quectel EG915U-EU with Teltonika TM2500
  • FMC920-QK/IBD: Quectel EG915U-LA with Teltonika TM2500
Technology
LTE Cat 1/GSM/GPRS/GNSS/BLUETOOTH® LE
2 G bands
FMC920-QJ/IBB
GSM: B2/B3/B5/B8
FMC920-QK/IBD
GSM: B2/B3/B5/B8
4 G L T E bands
FMC920-QJ/IBB
LTE FDD: B1/B3/B7/B8/B20/B28
FMC920-QK/IBD
LTE FDD: B2/B3/B4/B5/B7/B8/B28/B66
Data transfer
LTE-FDD
Max 10 Mbps (DL) / Max 5 Mbps (UL)
LTE-TDD
Max 5.6 Mbps (DL) / Max 1.6 Mbps (UL)
GSM-GPRS
Max 85.6 Kbps (DL) / Max 85.6 Kbps (UL)
Data support
SMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, MQTT)
Input voltage range
10 - 30 V DC with overvoltage protection
Internal Back-up battery
170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Internal fuse
3A, 125V
Power consumption
At 12V < 2 mA
Ultra Deep Sleep
At 12V < 3 mA
Deep Sleep
At 12V < 6 mA
Online Deep Sleep
At 12V < 14 mA
GPS Sleep
At 12V < 26 mA
Nominal (no load)
At 12V < 42 mA
Max (full load / peak)
Specification
4.0 + LE
Supported peripherals
EYE beacon and sensor, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth® LE beacons and sensors support
Dimensions
79 × 43 × 12 mm (L × W × H)
Weight
54 g
Operating temperature (without battery)
-40 °C to +85 °C
Storage temperature (without battery)
-40 °C to +85 °C
Operating temperature (with battery)
-20 °C to +40 °C
Storage temperature (with battery)
-20 °C to +60 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP54
Battery charge temperature
0 °C to +45 °C
Battery discharge temperature
-20 °C to +60 °C
Battery storage temperature
1 month
-20 °C to +45 °C
6 months
-20 °C to +35 °C
Digital Inputs
1
Digital Outputs
1
Analog Inputs
1
G N S S antenna
Internal High Gain
Cellular antenna
Internal High Gain
U S B
2.0 Micro-USB
L E D indication
2 status LED lights
S I M
Micro-SIM
Memory
128 MB internal flash memory
Sensors
Accelerometer
Scenarios
Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update
FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology)
S M S
Configuration, Events, DOUT control, Debug
G P R S commands
Configuration, DOUT control, Debug
Time Synchronization
GNSS, NITZ, NTP
Fuel monitoring
LLS (Analog), OBDII dongle
Ignition detection
Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)
Regulatory
FMC920-QJ/IBB
CE/RED, CITC, E-Mark, RCM, REACH, RoHS, TRA, SDPPI (POSTEL), SIRIM, CAS, TRA
FMC920-QK/IBD
Anatel, REACH, RoHS

What's in the Box

FMC920 tracker
Input/Output power supply cable (0.7m)
