In Stock

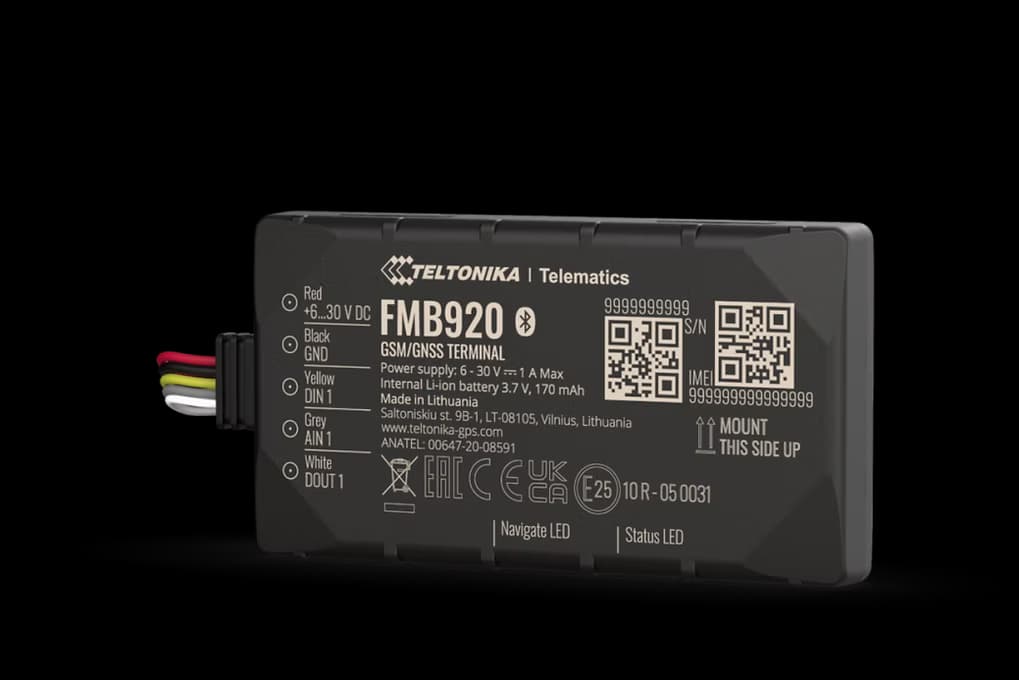

Teltonika FMB920 2G
Teltonika
4
(20000 reviews)
The Teltonika FMB920 is a compact and smart GPS tracker designed for light vehicles, motorcycles, and fleet management applications. Despite its small size, it offers powerful tracking features including real-time location, driving behavior monitoring, crash detection, towing alerts, and fuel monitoring. With multiple sleep modes for power saving, remote configuration via FOTA, and Bluetooth® connectivity, the FMB920 is an affordable and reliable solution for secure and efficient vehicle tracking.
1
In Stock
Key Features
Compact and lightweight design for easy installation
Built-in GNSS and GSM/LTE modules for real-time tracking
Accelerometer for crash detection and driver behavior monitoring
DOUT control via call or SMS
Multiple sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Technical Specifications
Comprehensive details and features
Name
Teltonika TM2500
Technology
GSM/GPRS/GNSS/BLUETOOTH® LE
2 G bands
Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer
GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data support
SMS (TEXT, data)
Input voltage range
6–30 V DC with overvoltage protection
Internal Back-up battery
170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Internal fuse
3A, 125V
Power consumption
- At 12V < 2 mA (Ultra Deep Sleep)
- At 12V < 4 mA (Deep Sleep)
- At 12V < 5 mA (Online Sleep)
- At 12V < 6 mA (GPS Sleep)
- At 12V < 25 mA (nominal)
Specification
4.0 + LE
Supported peripherals
EYE beacon and sensor, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth® LE beacons and sensors support
Dimensions
79 x 43 x 12 mm (L x W x H)
Weight
54 g
Operating temperature (without battery)
-40 °C to +85 °C
Storage temperature (without battery)
-40 °C to +85 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP54
Battery charge temperature
0 °C to +45 °C
Battery discharge temperature
-20 °C to +60 °C
Battery storage temperature
1 month
-20 °C to +45 °C6 months
-20 °C to +35 °CDigital Inputs
1
Digital Outputs
1
Analog Inputs
1
G N S S antenna
Internal High Gain
Cellular antenna
Internal High Gain
U S B
2.0 Micro-USB
L E D indication
2 status LED lights
S I M
Micro-SIM
Memory
128 MB internal flash memory
Sensors
Accelerometer
Scenarios
Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update
FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth)
S M S
Configuration, Events, DOUT control, Debug
G P R S commands
Configuration, DOUT control, Debug
Time Synchronization
GNSS, NITZ, NTP
Fuel monitoring
LLS (Analog), OBDII dongle
Ignition detection
Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)
- Regulatory : CE/RED, E-Mark, EAC, RoHS, REACH, Anatel, ICASA, SIRIM QAS, SDPPI POSTEL
What's in the Box
FMB920 tracker
Micro USB cable (0.8m)
Packaging box with branding
